    Environmental Vibration Test System Air Cooled For Climate Test

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E809
    Certification : CE, ISO
    Supply Ability : 150 Set/Sets per Month
    Price : $12,000.00 - $50,000.00/sets
    • Product Details
    • Company Profile

    Environmental Vibration Test System Air Cooled For Climate Test

    Environmental Vibration Test System For Climate Test

    Product Description

    Environmental Vibration Test System Air Cooled For Climate Test

    Images for reference only

    PRODUCT DESCRIPTION

    The test system adopts test for aerospace products, automotive, electrical appliances and instruments, materials, coating and other parts under temperature&humidity and vibration environment condition. It’s widely used to do environmental endurance test, reliability growth test, reliability qualification test, product reliability acceptance test, routine test, environment stress screening test and so on.

    TEMPERATURE & HUMIDITY CHAMBER SPECIFICATIONS

    Item

    Specification

    Internal dimension (W*D*H)

    600*800*850mm

    Temperature range

    +10~+100℃

    Temperature fluctuation

    ±0.5℃

    Temperature uniformity

    2℃

    Humidity range

    20~98%RH (Refer Image below)

    Humidity fluctuation

    ±2.5%RH

    Humidity uniformity

    3%RH

    Cooling speed

    1℃/min in average (without loading)

    Heating speed

    3℃/min in average (without loading)

    Internal chamber material

    SUS#304 stainless steel, mirror finished

    External chamber material

    Stainless steel with paint spray

    Cooling method

    Air-cooled

    Controller

    Programmable control temperature and humidity

    Can set different parameter for cyclic test

    Insulation material

    50mm high density rigid Polyurethane foam

    Heater

    Explosion-proof type SUS#304 stainless steel fins radiator pipe heater

    Compressor

    France Tecumseh compressor

    Lighting

    Heat resistance

    Temperature sensor

    PT-100 dry and wet bulb sensor

    Observation window

    Tempered glass

    Testing hole

    Diameter 50mm, for cable routing

    Sample tray

    SUS#304 stainless steel, 2pcs

    Safety protection device

    Protection for leakage

    Over-temperature

    Compressor overvoltage and overload

    Heater short circuit

    Water shortage

    Environmental Vibration Test System Air Cooled For Climate Test

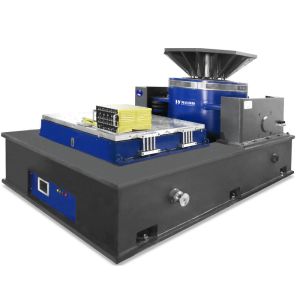

    VIBRATION TEST SYSTEM
    Environmental Vibration Test System Air Cooled For Climate Test

    Environmental Vibration Test System Air Cooled For Climate Test Basic Structure of Vibration Test System

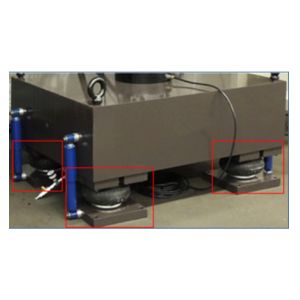

    The vibration tester equipped with airbag shock isolation

    devices on the machine bottom without the need of

    additional foundation, perfect reproduction of vibrational

    wave and reduction in vibration transmittance.

    STANDARD SPECIFICATIONS

    Item

    Description

    Sine Force

    5.88KN

    Shock Force

    11.76KN

    Frequency Range

    5~3000 Hz

    Displacement

    51 mm

    Max. Velocity

    2m/s

    Max. Acceleration

    981 m/s² (without loading)

    Armature Diameter

    200 mm

    Permitted Load Torque

    >300 N•m

    Effective Armature Mass

    6 kg

    Max. Load Capacity

    100kg

    Magnetic Leakage

    ≤1 mT

    Axial Vibration Isolation Frequency

    <3 Hz

    Load attachment

    16 stainless steel M8 inserts

    Dimension(L*W*H)

    850*665*760mm

    Approx. weight

    990kg

    POWER AMPLIFIER

    Environmental Vibration Test System Air Cooled For Climate Test

    STANDARD SPECIFICATIONS

    Item

    Description

    Max. Output Power

    8kVA

    Frequency Response

    >65 dB

    Output Voltage

    120 Vrms

    Conversion Efficiency

    >95%

    Dimension(L*W*H)

    800*600*1558mm

    Approx. Weight

    320kg

    Safety Protection Device

    Over voltage protection

    Over current protection

    Over-temperature protection

    Over displaced protection

    Cooling system failure protection

    Excitation power failure protection
