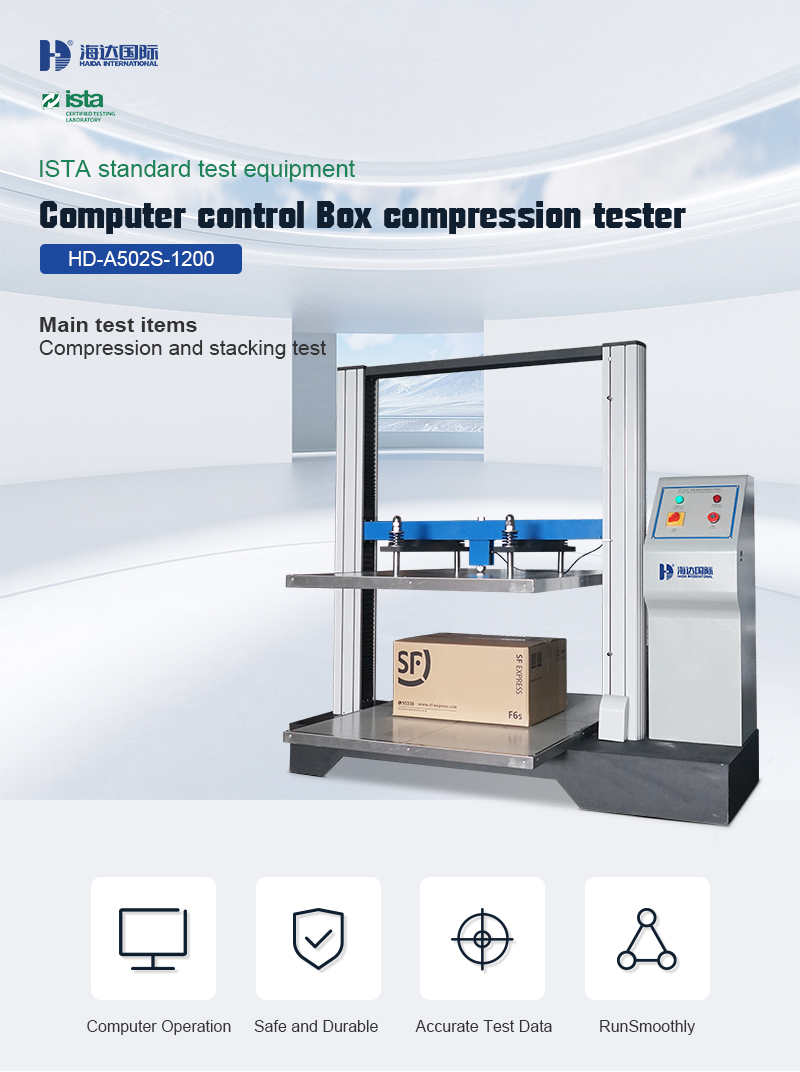

Box Compression Testing Machine With Windows 7 Control System
Package Testing Equipment
Product Description:
Compression tester is mainly used to test the compressive strength
of secondary normal size corrugated cartons and other material-made
packaging containers. It is widely used in food and beverage
instant noodle packaging, cosmetic packaging, beer packing,
cereals, oil packing and more. Moreover, Compression tester has
excellent control accuracy and advanced technologies. Therefore, It
is the most cost-effective universal carton compression tester yet
in the domestic market.
Features:
The pattern of Test reports can be self-designated; test data can
be displayed directly in the main screen; Choosing translational,
comparative mode at the same time to make a number of curve data
comparison;
With a variety of measurement units, Measure In Imperial & Metric
are switchable; With self-return & auto-correction function; With
automatic magnification function, in order to achieve the most
appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis
function; It can do test of compression, bending, pressure holding
& fatigue. With high precision and accuracy and reasonable price,
it can test the crush instantaneously and stop automatically.
Technical Parameters:
| Parameter | Specification |
|---|
| Effective test area | 1000×1200×1000mm |
| Load cell Resolution | 1/250,000 |
| Display | LCD Display |
| Load cell | 1 Load Cell For Highest Accuracy |
| Load Precision | Within ±0.25% |
| Application | Package Testing |
| Data display | Load, Displacement, Speed, Loading Rate And Elapsed Time |
| Software | TM 2101 |
| Max. Force | 2000 Kg (20KN) |
| Test Force | Tensile, Compression, Bending, Shear, Peel |
| Keywords | Carton Compression Tester, Compression Testing Machine, Test
Machine |
Applications:
Different Types of Packaging
Several industries need carton packaging, such as home appliances,
computers, mobile phones, electronic products, washing machines,
shoes, food, medicine, and furniture. Examples of carton packaging
include corrugated boxes and honeycomb boxes.
Additionally, plastic barrels are used for packaging items like
edible oil and mineral water. Paper barrels, cartons, paper cans,
and container barrels (known as IBC barrels) are also available
options.
Customization:
Customize your Package Testing Equipment with the following
specifications:
- Brand Name: HAIDA
- Model Number: HD-A502S-1200
- Place of Origin: Guangdong, China (Mainland)
- Certification: ISO, CE
- Minimum Order Quantity: 1 set
- Price: Negotiable
- Packaging Details: Each set protected with resin fiber and PP film, then put into a
Strong wooden case with operation manual
- Delivery Time: 20 days after order confirmed
- Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, In cash, escrow
- Supply Ability: 150 Sets per Month
- Test Speed: 10 ±3mm/min (0.01~200mm/min Adjustable)
- Control system: Windows 7, RS-232 Interface
- Data display: Load, Displacement, Speed, Loading Rate and Elapsed Time
- Max. Force: 2000 Kg (20KN)
- Force reading: Kgf, Ibf, N, KN, T etc.
Our box compression testing machine, paper testing equipment and
package testing equipment are the perfect solutions for all your
testing needs.All parameters can be customized.
Packing and Shipping:
Package Testing Equipment must be packaged in accordance with the
manufacturer's specifications. Proper packaging will ensure that
the product is properly protected during shipping and handling. The
following items should be used when shipping Package Testing
Equipment:
- Reinforced corrugated boxes
- Bubble wrap
- Foam packaging
- Plastic wrapping
- Adhesive tape
When shipping Package Testing Equipment, it is important to ensure
that the package is clearly labeled with the appropriate shipping
information. This will help to ensure that the product arrives
safely and on time. Proper handling and packaging of the product is
essential for ensuring that the product is not damaged during
transit.
