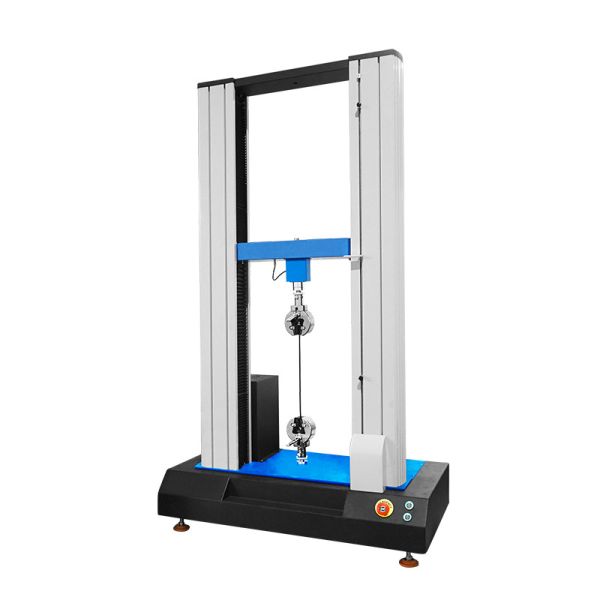

    Rubber Tensile Strength Testing Equipment With Panasonic Servo Motor

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : HD-B604B-S
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Rubber Tensile Strength Testing Equipment With Panasonic Servo Motor

    Rubber Tensile Strength Testing Equipment With Panasonic Servo Motor


    Applications:

    1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
    2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
    3. Deformation under defined load: Test deformation under defined load of tested sample
    4. Load under defined deformation: Test load under defined deformation of tested sample
    5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

    Film/Plastic Film:

    • ASTM D882: Tensile Test
    • ASTM F1306: Puncture Test
    • ASTM D1938: Trouser Tear Test
    • ASTM D2732: Thermal Shrinkage Test
    • ASTM D1709, ISO 7765-1: Free-Falling Dart Method
    • ASTM D1894: Static and Kinetic Coefficients of Friction
    • ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test

    Main Technical Parameter:

    Items

    Specification

    Sensor

    Celtron load cell

    Capacity

    100,500, 1000, 2000KG

    Unit Switchover

    G, KG, N, LB

    Display Device

    PC

    Resolution

    1/250,000

    Accuracy

    ±0.5%

    Max. Stroke

    1200mm (excluding fixture)

    Test Speed

    0.1-500mm/min (adjustable )

    Motor

    Panasonic Servo Motor

    Screw

    High Precise Ball Screw

    Elongation Accuracy

    0.001mm

    Power

    1∮, AC220V, 50HZ

    Weight

    Approx.155kg

    Accessories

    One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual


    Product Features:
    1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
    2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
    3. Data transmission: RS232
    4. Displacement resolution: 0.001mm

    Pictures:
    tensile testing machine

    tensile testing machine

    tensile testing machine
