Temperature And Humidity Test Chamber/Walk In Chamber With
Environmental
Walk-in
Chamber.pdf
Walk In Chamber Ovreview:
walk in chamber is a environment test chamber with temperature and
humidity testing.walk in chamber can accurately simulate
low-temperature, high temperature, high temperature and humidity,
low temperature and humidity and other complex natural environment,
applicable to plastics, electronics, food, clothing, vehicles,
metals, chemicals, building materials and other industries in the
reliability of product testing.
This walk in chamber have a large chamber size (2850 x 1700 x 3200
Mm) for diffirence products to make a test.and it is easy to
operate with touch screen system.and you will observe the sample
testing by viewing windows.
Walk In Chamber Application Test Items:
walk in chamber main for testing the performance of materials in a
variety of environments tempearetures heat resistance test , cold
resistance test , dry resistance test, humidity resistance test.
Walk In Chamber Application Metarial or Industry:
walk in chamber suitable for electronics, electrical appliances,
mobile phones, communications, instrumentation, vehicles, plastic
products, metal, food, chemical, building materials, medical,
aerospace and other products in different temperature and humidity
environment quality testing.
Test Standard(including but not limited to... ):
Compliance with ASTM G53-77 specifications GB, GJB, MIL, ASTM, CNS,
IEC, JIS, AATCC, DIN, Fed Test, BS and SAE.
Specifications:
| Sr No | Specification | Hd-E705-7-1 |
| 1 | Temperature Range | -50c To +100c |
| 2 | Humidity Range | 40% To 98% Rh |
| 3 | Dimension (Internal) (w x d x h) | 1500 x 1500 x 3000 Mm |
| 4 | Dimension (External) (w x d x h) | 2850 x 1700 x 3200 Mm |
| 5 | Ramp | Variable, Temp. 0~5c / Min & Humidity 0~5%/Min
In Average, No Load |
| 6 | Accuracy | Temp. ±1c, Humidity ±2.5%Rh |
| 7 | Interior Walls | Stainless Steel 304 |
| 8 | Exterior Walls | Cold Rolled Stell Plate With Baking Finish |
| 9 | Temperature & Humidity Measurement And Controller | 32 Bit Control And Monitoring System.
Interface Facility With Rs232
Programmable Temp. Humid. Controller |
| 10 | Viewing Window | Multi Pane Glass Window Size |
| 11 | Port Holes | 50 Mm Diameter For Wire Routing |
| 12 | Power Supply Requirement | Three Phase, Ac380 v ± 10 %, 50 Hz |
| 13 | Sound Pressure Level | <72db (a) |
| 14 | Condenser Cooling | Water Cooled |
(The above parameters are machine standard parameters and can be
customized according to your requirements)

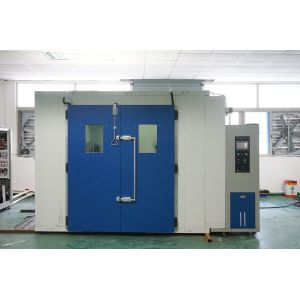

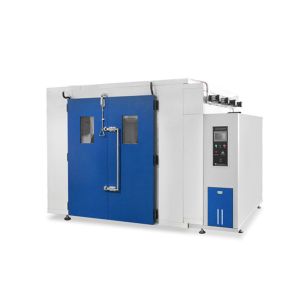

Chamber Pictures:
