    Tensile TAPPI-T804 Carton Compression Tester , Paper Compression Strenth Testing Machines

    Ask Lasest Price
    Brand Name : HAIDA
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
    Model Number : HD-A501-600
    Price : Negotiable
    Delivery Time : 20 days after order confirmed
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    • Product Details
    • Company Profile

    Tensile TAPPI-T804 Carton Compression Tester , Paper Compression Strenth Testing Machines

    Tensile TAPPI-T804 Carton Compression Tester , Paper Compression Strenth Testing Machines

    Specifications
    Paper Compression Strenth Testing Machines
    1. High quality
    2. 2 years warranty
    3. Up to TAPPI-T804,
    4. Reasonable price


    1. About the machine:

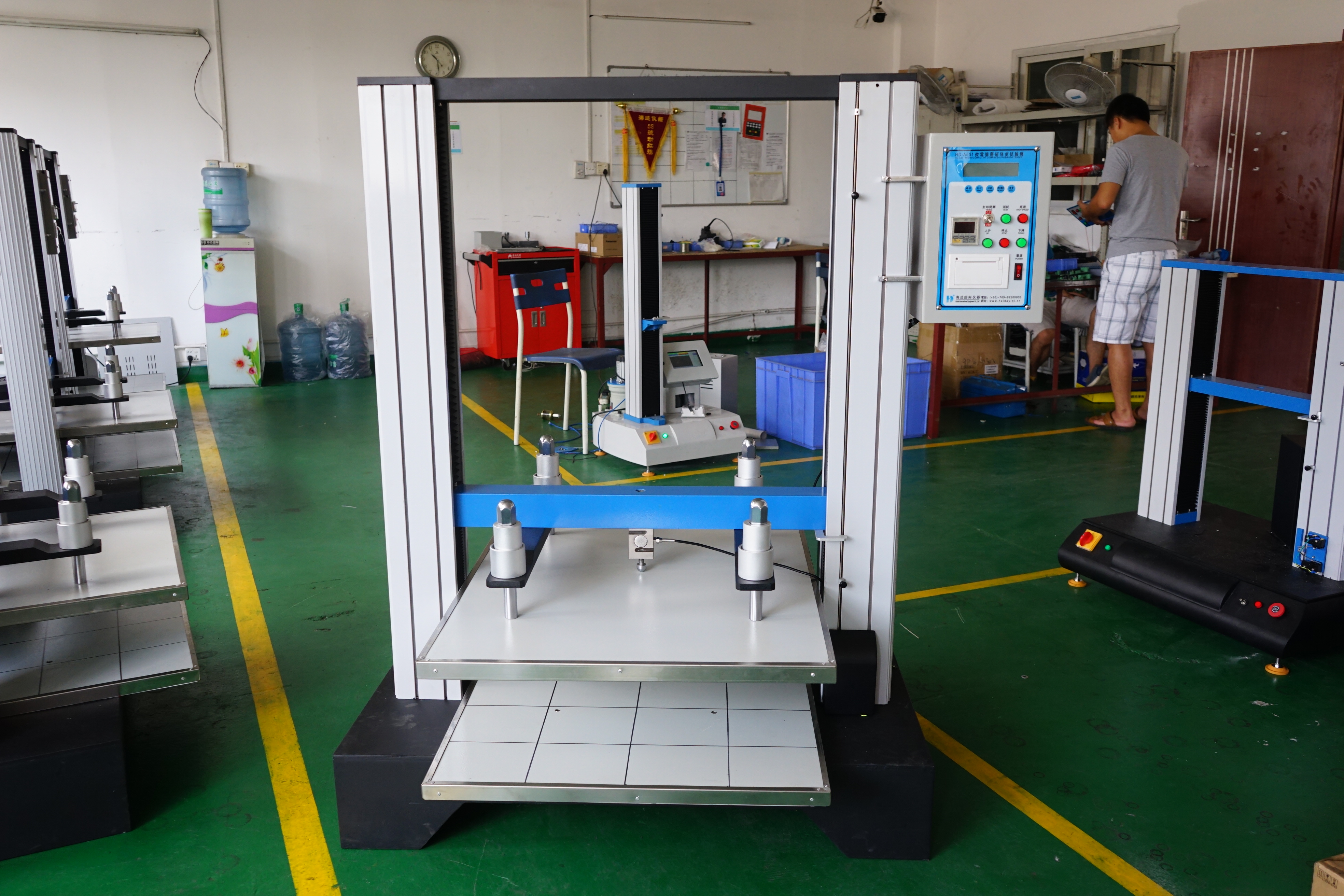

    Paper Compression Strenth Testing Machine is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.

    2. Design criteria:
    TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4

    3. Specifications:
    Carton Compression Testing Instrument

    Model

    HD-A501-600

    Unit (switchable)

    Kg, Lb, N

    Capacity (optional)

    1T

    Load Resolution

    1/100,000

    Load Accuracy

    ≤0.5%

    Test Space (L×W×H)

    600×800×800mm

    Speed of Compression

    10 ± 3 mm/min

    Report Items

    Serial number, Peak value, Average value, Designated holding pressure value; all memorable

    Structure

    AC Frequency Conversion Motor ( Taiwan);
    Imported screw rod ;4 sensors; LED display

    Dimension (L×W×H)

    2370×1500×2100mm (can be custom made)

    Power

    1ø, 220v/ 50Hz

    Weight

    Approx. 850kg

    Safety Devices

    Overload protection, overvoltage protection & limited position protection device

    Standard

    TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642


    4.Features
    Paper Compression Strenth Testing Machines is using a single-screen operation; do not need to switch the screen;
    With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

    Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
    The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
    Choosing translational, comparative mode at the same time to make a number of curve data comparison;
    With a variety of measurement units, Measure In Imperial & Metric are switchable;
    With self-return & auto-correction function;
    With automatic magnification function, in order to achieve the most appropriate size of the graphics;
    With the user-defined Test methods; with experimental data analysis function;
    It can do test of compression, bending, pressure holding & fatigue.

    With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

    5.Company Services:
    All Haida employees adhere to the " Quality comes from precision, quality creates the future " business
    philosophy, serve each client actively and conscientiously in order to satisfy Haida equipment brand
    consumers' needs.

    The certification
    ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
