TAPPI-T804 PC Paper Testing Equipments , Carton Compression Testing Machine

    Buy cheap TAPPI-T804 PC Paper Testing Equipments , Carton Compression Testing Machine from wholesalers

    Buy cheap TAPPI-T804 PC Paper Testing Equipments , Carton Compression Testing Machine from wholesalers
    • Buy cheap TAPPI-T804 PC Paper Testing Equipments , Carton Compression Testing Machine from wholesalers
    • Buy cheap TAPPI-T804 PC Paper Testing Equipments , Carton Compression Testing Machine from wholesalers
    • Buy cheap TAPPI-T804 PC Paper Testing Equipments , Carton Compression Testing Machine from wholesalers

    TAPPI-T804 PC Paper Testing Equipments , Carton Compression Testing Machine

    Ask Lasest Price
    Brand Name : HAIDA
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
    Model Number : HD-A501-800
    Price : Negotiable
    Delivery Time : 20 days after order confirmed
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    • Product Details
    • Company Profile

    TAPPI-T804 PC Paper Testing Equipments , Carton Compression Testing Machine

    TAPPI-T804 Paper Testing Equipments , Carton Compression Testing Machine


    Specifications
    Carton Compression Testing Instrument
    1.High quality
    2.2 years warranty
    3.Up to TAPPI-T804,
    4.Reasonable price


    1.About the machine:

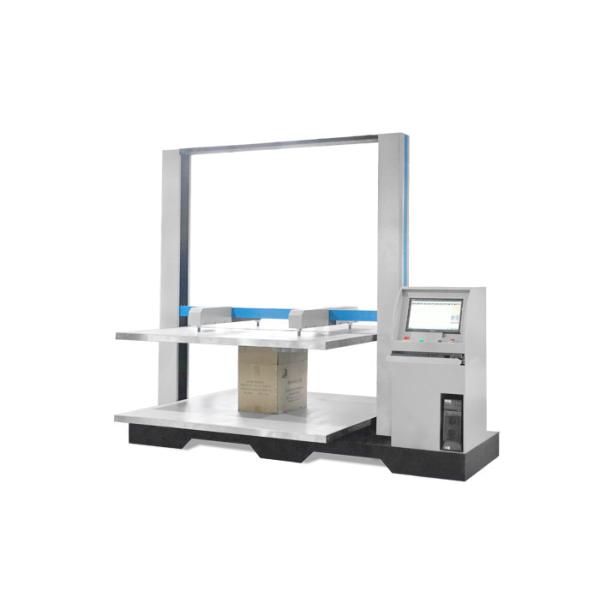

    TAPPI-T804 Paper Carton Compression Testing Equipments electronic test and measurement instrument is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton.

    2.Design criteria:

    TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4

    3.Specifications:
    TAPPI-T804 Paper Carton Compression Testing Equipments

    Model

    HD-A501-800

    Unit (switchable)

    Kg, Lb, N

    Capacity (optional)

    2T

    Load Resolution

    1/100,000

    Stroke (exclude the grips)

    400 mm

    Load Accuracy

    ≤0.5%

    Test Space (L×W×H)

    800×1000×1000mm

    Speed of Compression

    10 ± 3 mm/min

    Operation Mode

    PC

    Report Items

    Serial number, Peak value, Average value, Designated holding pressure value; all memorable

    Structure

    AC Frequency Conversion Motor ( Taiwan);
    Imported screw rod ;4 sensors; LED display

    Dimension (L×W×H)

    2370×1500×2100mm (can be custom made)

    Power

    1ø, 220v/ 50Hz

    Weight

    Approx. 850kg

    Safety Devices

    Overload protection, overvoltage protection & limited position protection device

    Standard

    TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642


    4.Features
    Carton Compression Testing Instrument
    1. TAPPI-T804 Paper Carton Compression Testing Equipments Using a single-screen operation; do not need to switch the screen;
    2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

    3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
    4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
    5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
    6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
    7. With self-return & auto-correction function;
    8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
    9. With the user-defined Test methods; with experimental data analysis function;
    10. It can do test of compression, bending, pressure holding & fatigue.

    11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.


    TAPPI-T804 PC Paper Testing Equipments , Carton Compression Testing Machine

    The certification
    ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
